In the fast-paced world of computing, speed and efficiency are paramount. M.2 SSDs, or Solid-State Drives, have emerged as a game-changer in this regard. They offer a substantial upgrade over traditional hard drives and even older SSDs. In this article, we’ll dive into the world of M.2 SSDs, exploring their pros and cons, and guiding you through the installation process. Let’s get started.
What is an M.2 SSD?
M.2 SSDs are storage devices that use NAND flash memory to store data. Unlike traditional hard drives, they have no moving parts, which means faster data access and better durability. These drives come in a slim, rectangular form factor, resembling a stick of gum.
Types of M.2 SSDs
There are different types of M.2 SSDs, with the most common being SATA and NVMe. SATA M.2 SSDs are more affordable and offer decent speed improvements over HDDs. On the other hand, NVMe M.2 SSDs are the speed demons of the storage world, with significantly faster data transfer rates.
The Pros of M.2 SSDs
1 Blazing Speeds
One of the biggest advantages of M.2 SSDs is their speed. NVMe M.2 SSDs, in particular, can offer read and write speeds that are several times faster than traditional hard drives. This means your operating system and applications load in the blink of an eye, and file transfers become lightning fast.
2 Compact Form Factor
M.2 SSDs are incredibly compact, which makes them perfect for laptops and small form-factor PCs. Their slim design saves space and allows for more flexibility when configuring your system.
3 Energy Efficiency
Compared to traditional hard drives, M.2 SSDs are much more energy-efficient. They consume less power, generate less heat, and prolong the battery life of laptops.
The Cons of M.2 SSDs
1 Limited Storage
While M.2 SSDs are fantastic in many aspects, they tend to offer less storage capacity compared to traditional HDDs. If you require terabytes of storage, you might have to consider other options or combine an M.2 SSD with additional drives.
Not all systems are equipped to handle M.2 SSDs. Before purchasing one, it’s crucial to check whether your motherboard has the necessary M.2 slot. If not, you might need an adapter or opt for a different storage solution.
How to Install an M.2 SSD
1. Gather the Tools
Before you start the installation process, gather the necessary tools and materials. You will need:
- A screwdriver (typically a small Phillips head screwdriver)
- Your M.2 SSD
- Your computer’s manual or motherboard documentation
2. Prepare Your Workspace
Make sure to work in a clean and well-lit area. Ideally, use an anti-static mat or wrist strap to prevent electrostatic discharge, which can damage sensitive electronic components.
3. Power Off and Unplug
Turn off your computer or laptop and disconnect it from any power source. For added safety, it’s a good idea to press the power button to discharge any residual electricity in the system.
4. Locate the M.2 Slot
Refer to your computer’s manual or motherboard documentation to find the M.2 slot. Most motherboards have an M.2 slot located near the CPU socket. It will look like a small, rectangular slot with a tiny screw hole near one end. On, the laptop, you will most likely find it on the back of your laptop. Remove the back cover where you install the battery on your laptop and you will find the lot there.
5. Prepare the M.2 SSD
Remove the M.2 SSD from its packaging. Be careful not to touch the gold connectors on the bottom with your fingers, as oil and dirt can affect the connection. Hold the SSD by the edges.

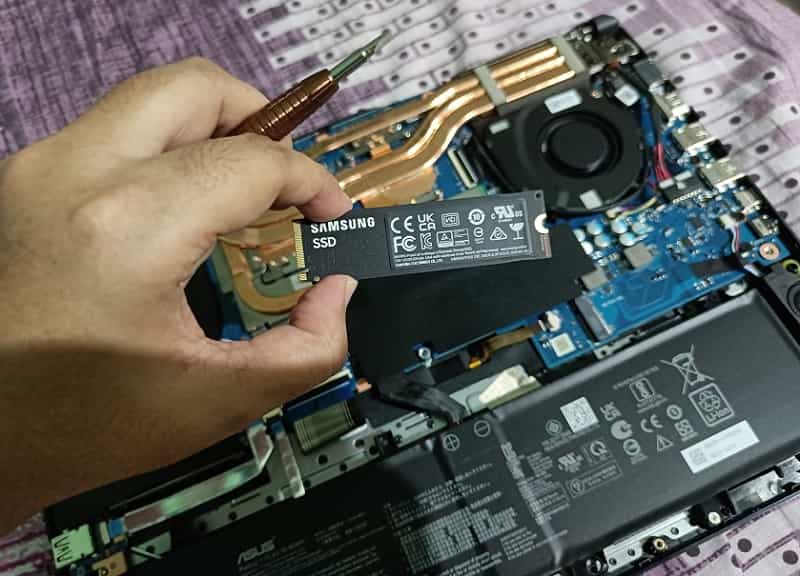

6. Insert the M.2 SSD
a. Gently insert the M.2 SSD into the slot at a slight angle, usually about 30 to 45 degrees. The longer side of the SSD should align with the slot. b. Push the SSD down firmly until it is fully seated in the slot. You should feel it click into place.
7. Secure the M.2 SSD
Locate the tiny screw hole near the end of the M.2 slot. It may already have a screw in place. If not, use the screw provided with your motherboard or SSD to secure the M.2 SSD in place. Be very careful not to overtighten the screw, as this could damage the SSD.
8. Reassemble and Power On
Once the M.2 SSD is securely in place, reassemble your computer. Reconnect any cables and plug it back into the power source.
9. BIOS Configuration
When you power on your computer, you may need to access the BIOS/UEFI settings to recognize the new SSD. Refer to your motherboard’s manual for instructions on how to do this. In the BIOS settings, you may need to enable the M.2 slot and set it as the boot drive if you intend to install your operating system on it.
10. Operating System Installation
If you’re using the M.2 SSD as your primary drive for the operating system, you can proceed to install the OS. Follow the installation instructions specific to your operating system.
That’s it! You’ve successfully installed an M.2 SSD in your computer. Enjoy the enhanced speed and performance it brings to your system.
Is an M.2 SSD Right for You?
Whether an M.2 SSD is the right choice for you depends on your needs. If you value speed, efficiency, and are willing to compromise on storage space, it’s an excellent option. However, if you require massive storage, you might want to combine it with traditional HDDs or consider other options.
M.2 SSDs represent a significant leap in storage technology. They offer incredible speed, efficiency, and a compact form factor. However, they may not be the best choice for everyone due to their limited storage capacity. Ultimately, the decision to invest in an M.2 SSD depends on your specific requirements and priorities.
1. Are M.2 SSDs compatible with all motherboards?
Not all motherboards support M.2 SSDs. It’s essential to check your motherboard’s specifications to ensure compatibility.
2. Can I use an M.2 SSD as my primary storage device?
Yes, you can use an M.2 SSD as your primary storage device for the operating system and applications. For mass storage, you may need additional drives.
3. Are M.2 SSDs difficult to install?
Installing an M.2 SSD is relatively straightforward, but it’s essential to follow the manufacturer’s instructions and take precautions to avoid damage.
4. Do I need a heatsink for my M.2 SSD?
Heatsinks can help dissipate heat from high-performance M.2 SSDs, but they are not always necessary. It depends on your usage and system configuration.
5. Can I upgrade my laptop with an M.2 SSD?
Many laptops have M.2 slots for storage upgrades. Check your laptop’s manual or manufacturer’s website for compatibility and installation instructions.
In this article, we’ve explored the world of M.2 SSDs, their advantages, and drawbacks, and how to install one. Now, armed with this knowledge, you can make an informed decision about whether an M.2 SSD is the right choice for your computing needs.
